RIGID FRAME BUILDINGS

There are three main categories to Rigid Framed Buildings

A column free interior providing uninterrupted interior space. Example building structures are arenas or places of worship.

If interior columns are not a problem for your requirement, multi-span framing is a more economical option to clear span framing.
An example would be a retail store.

Primarily used for expansion or extension of a building, lean-to frames can provide additional space very economically.

Standard Colours - Final color selection should be made from metal color chips.

Signature 200

Standard Colurs 26 &24 Gauge Material

Siliconized Polyester, Standard Colurs 26 & 24 Gauge Material.

Polar White is a Straight Polyester.
* Also available in 29-gauge
** Minimum quantities and/or extended lead times required for 24-gauge. Please inquire.

Signature 300

Standard Colurs 26 Gauge PBR, PBU, AVP, PBC, PBD PANELS ONLY

Standard Colurs 26 Gauge PBR, PBU, AVP, PBC, PBD PANELS ONLY
Polyvinylidene Fluoride (PVDF); Low Gloss
* Also available in 24-gauge
** Minimum quantities and/or extended lead times required for 24-gauge. Please inquire.
Minimum quantities and/or extended lead times required for all gauges. Please inquire.

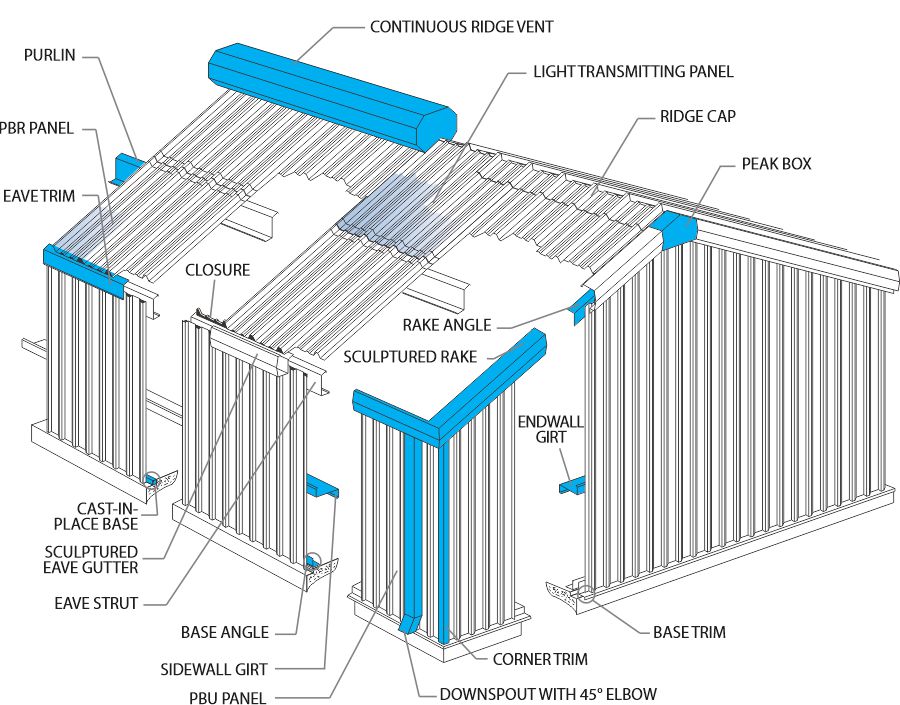

Available Accessories

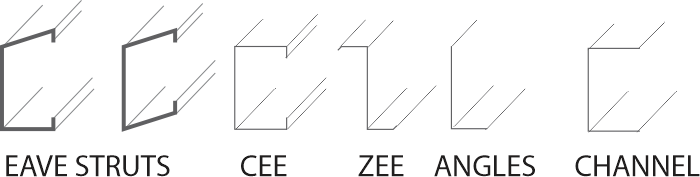

available accessories for rigid frame buildings Building Components
  • Hat and Channel Sections
  • Light transmitting Panels
  • roof Jacks
  • Fasteners
  • Ridge Caps
  • Closures
  • Doors
  • Windows
  • Sealants
  • Bracing
  • Bolts
  • Louvers
  • Sliding Door Hardware

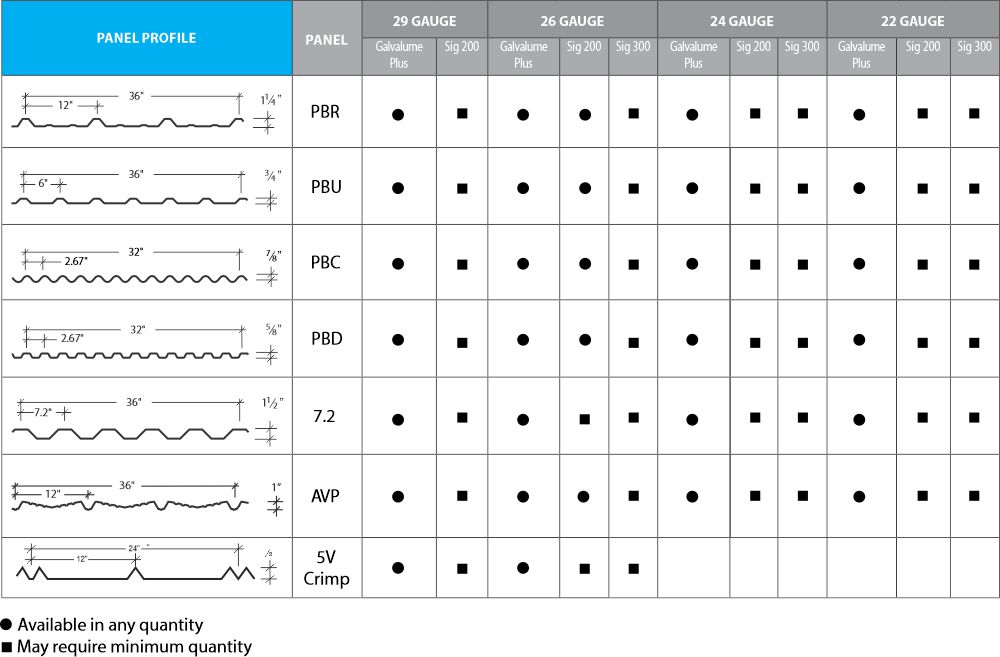

panel profile to gauge available

Single Slope Straight Column

Clear Span

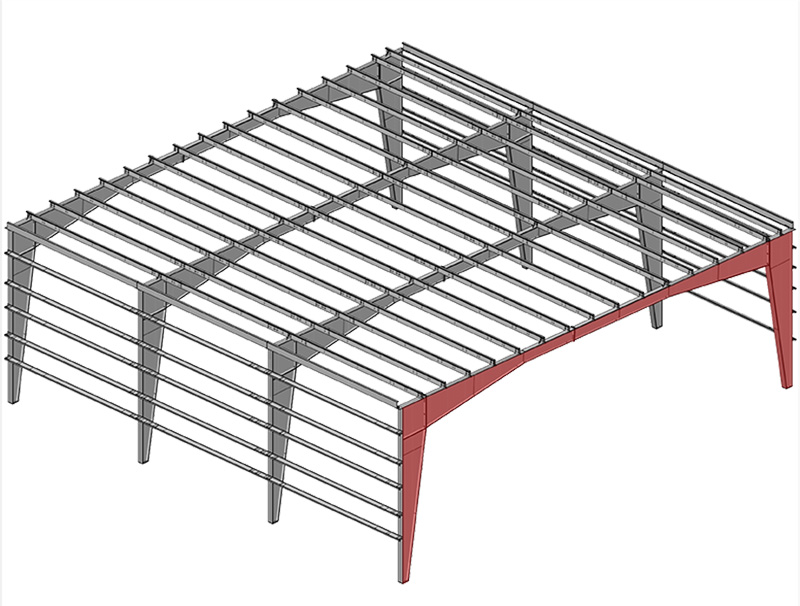

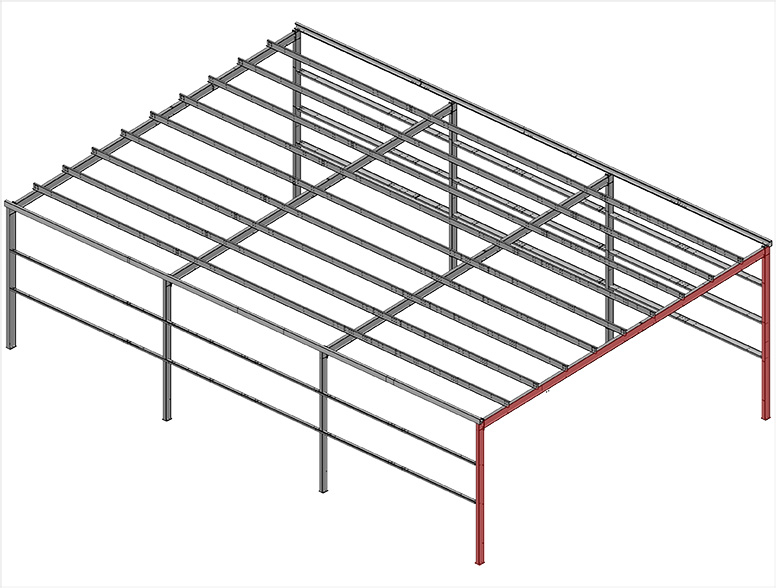

Single Slope Straight Column Clear Span

Single Slope Straight Column

Single Slope Straight Column Clear Span

Single Slope, Tapered Column

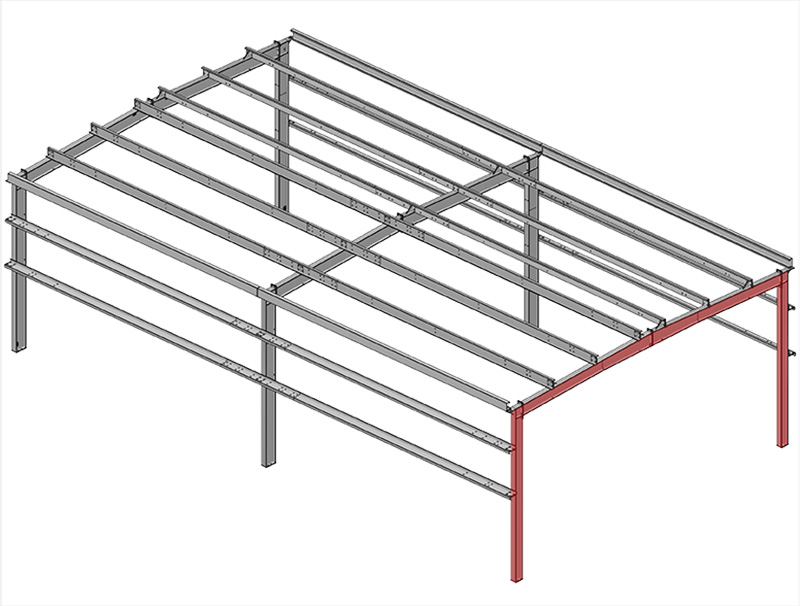

Double Slope Straight Column Clear Span

Double Slope Straight Column

Clear span frames are most often used in buildings where unobstructed interior space is required. Common uses include aircraft hangars, arenas, tennis centers, soccer centers, riding arenas, manufacturing facilities, warehouses, offices, and retail stores. Column-free interiors can also provide the space required for material handling and crane systems.

Multi-Span

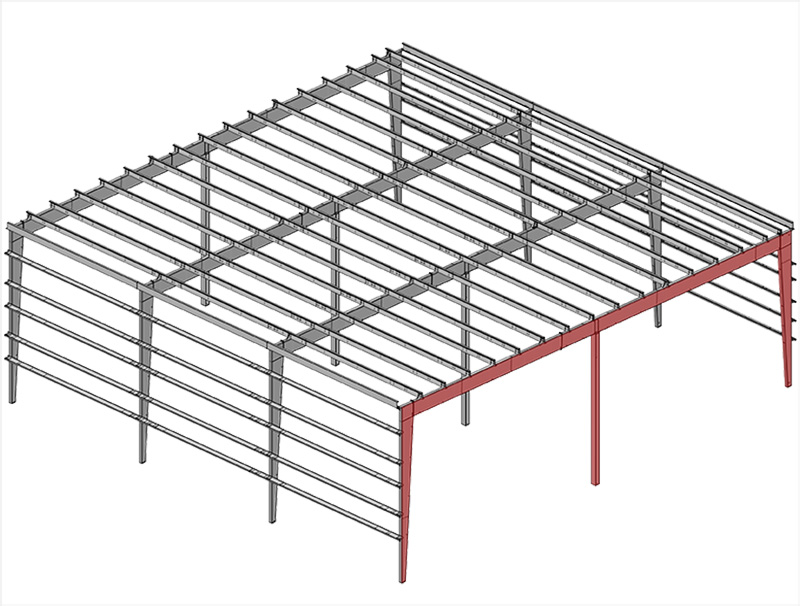

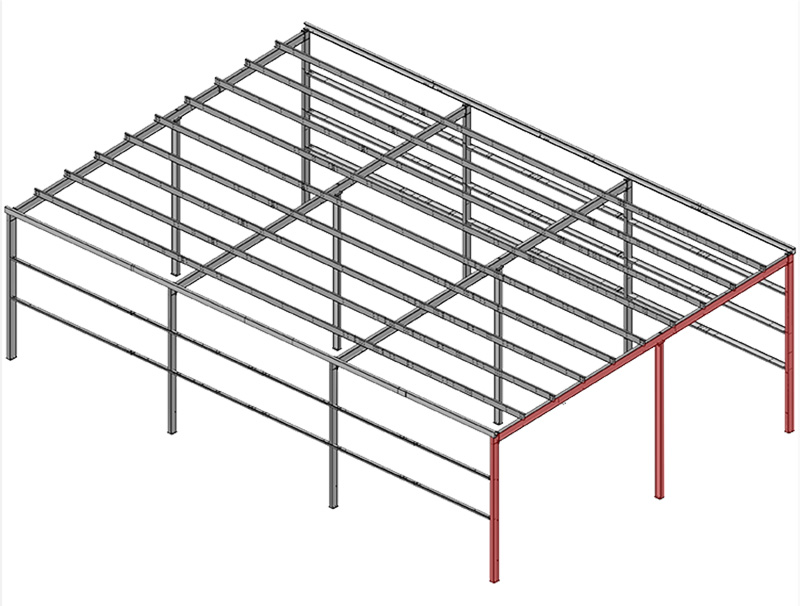

Single Slope Straight Column Multi-span

Single Slope Straight Column

Single Slope Straight Column Multi-span

Single Slope Tapered Column

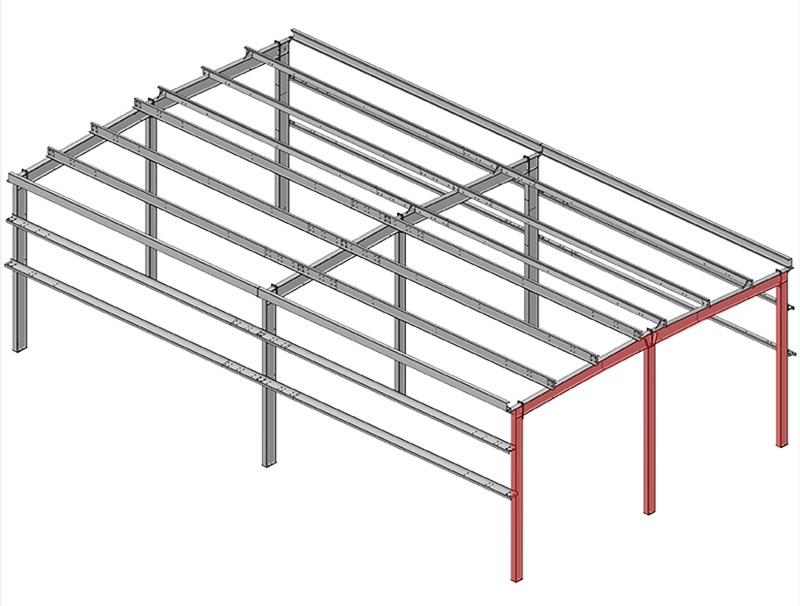

Double Slope Straight Column Multi-span

Double Slope Straight Column

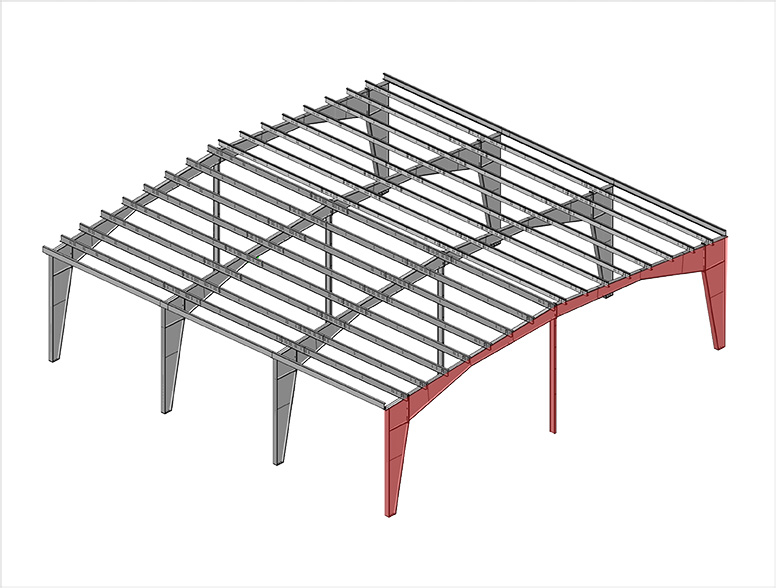

Double Slope Straight Column Multi-span

Double Slope Tapered Column

Multi-Span frames are commonly used for building layouts that permit interior columns. The spacing between columns can be consistent or varied to meet the requirements. Large open floor spaces are accommodated by using the minimum number of columns which allows large open space and easy movement of fork lifts, etc. Common uses include manufacturing plants, warehouses, truck terminals, and retail stores.

Lean-To

Single Slope Straight Column Lean-to

Lean-To Addition

Lean-To frames are primarily used for expansion or extension of a building. Lean-to frames can provide additional space very economically.
They are commonly used to provide additional office or storage space for a larger building. A lean-to frame typically has a single slope profile (no ridge) and straight sidewall columns. It must be supported by attachment to another frame.

Member cssa
